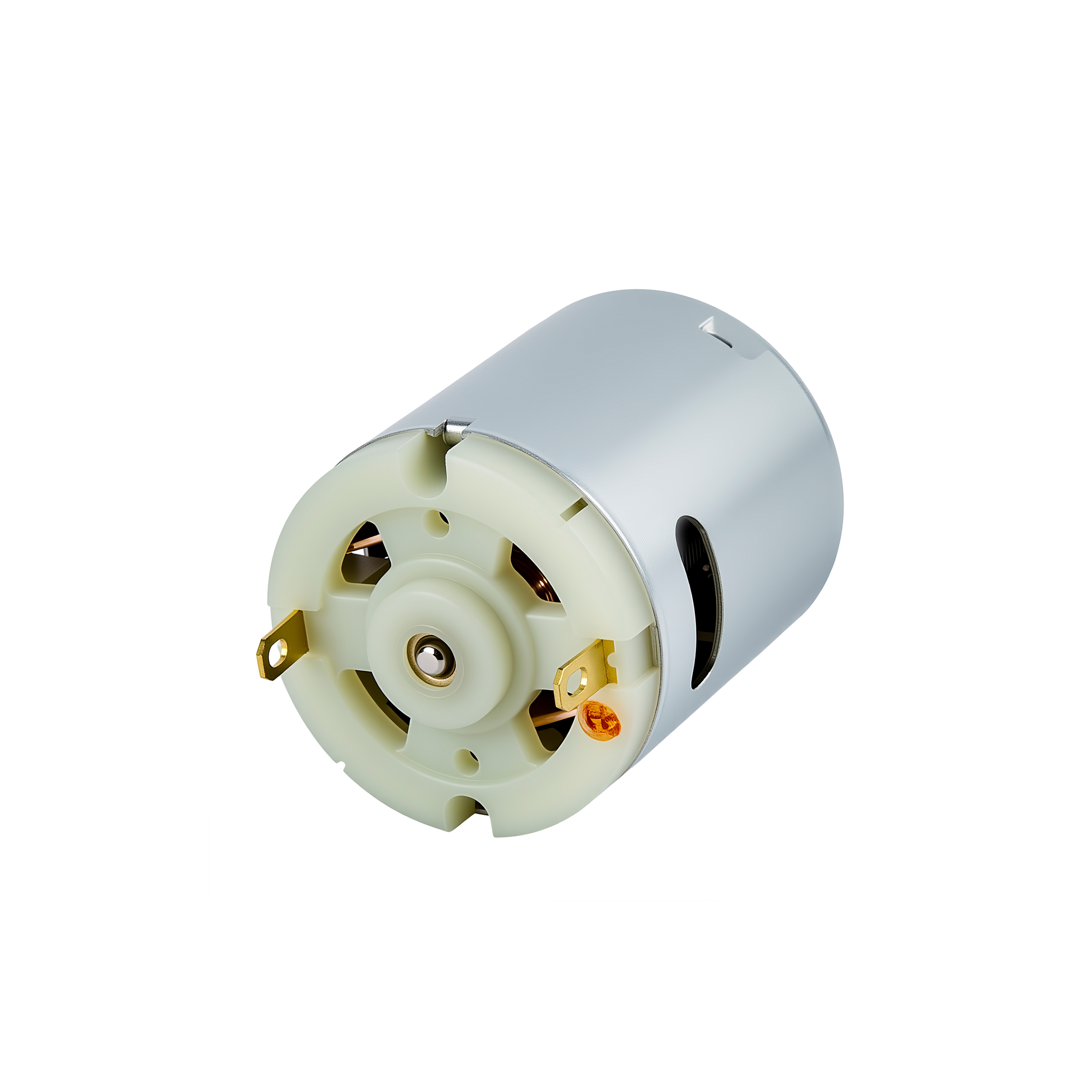

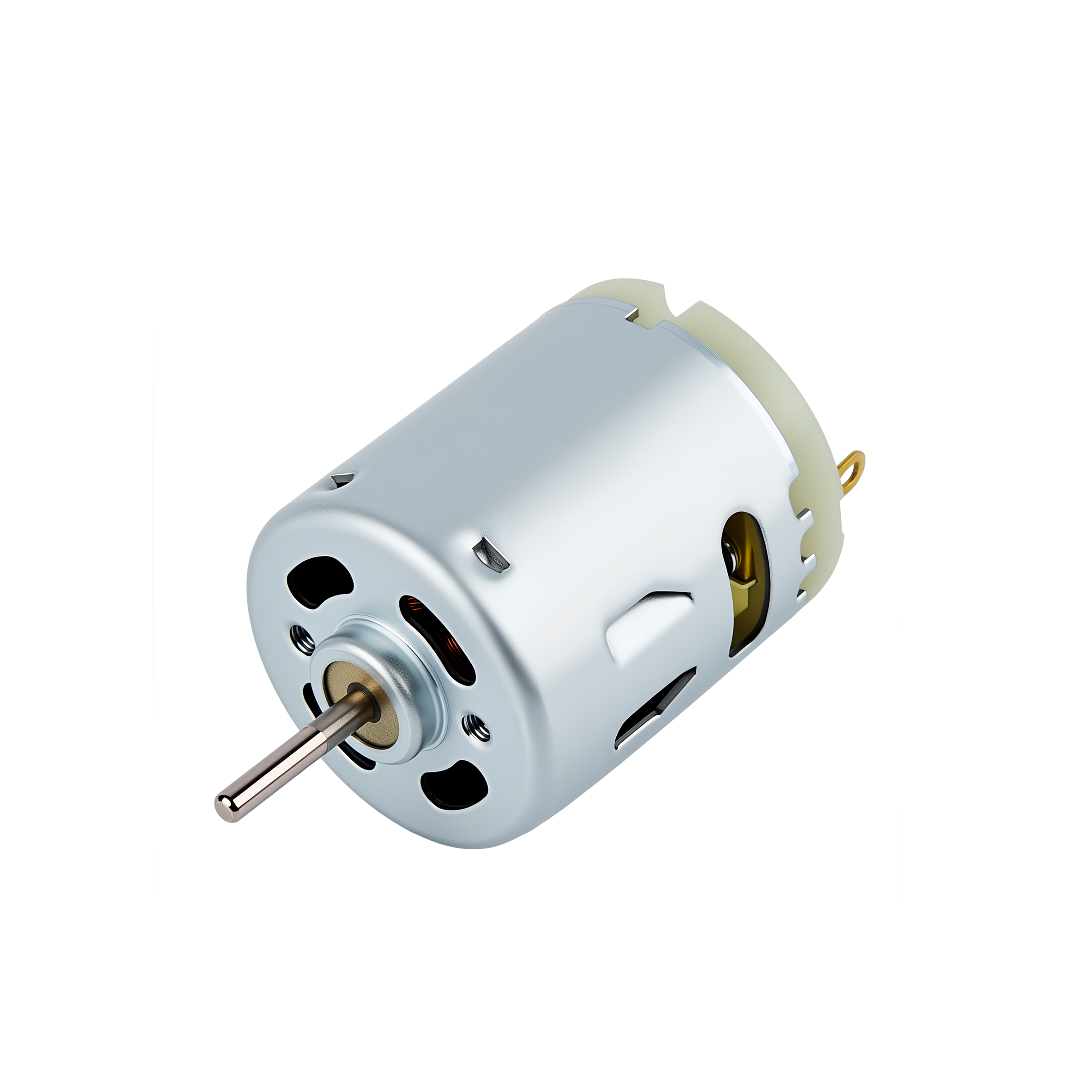

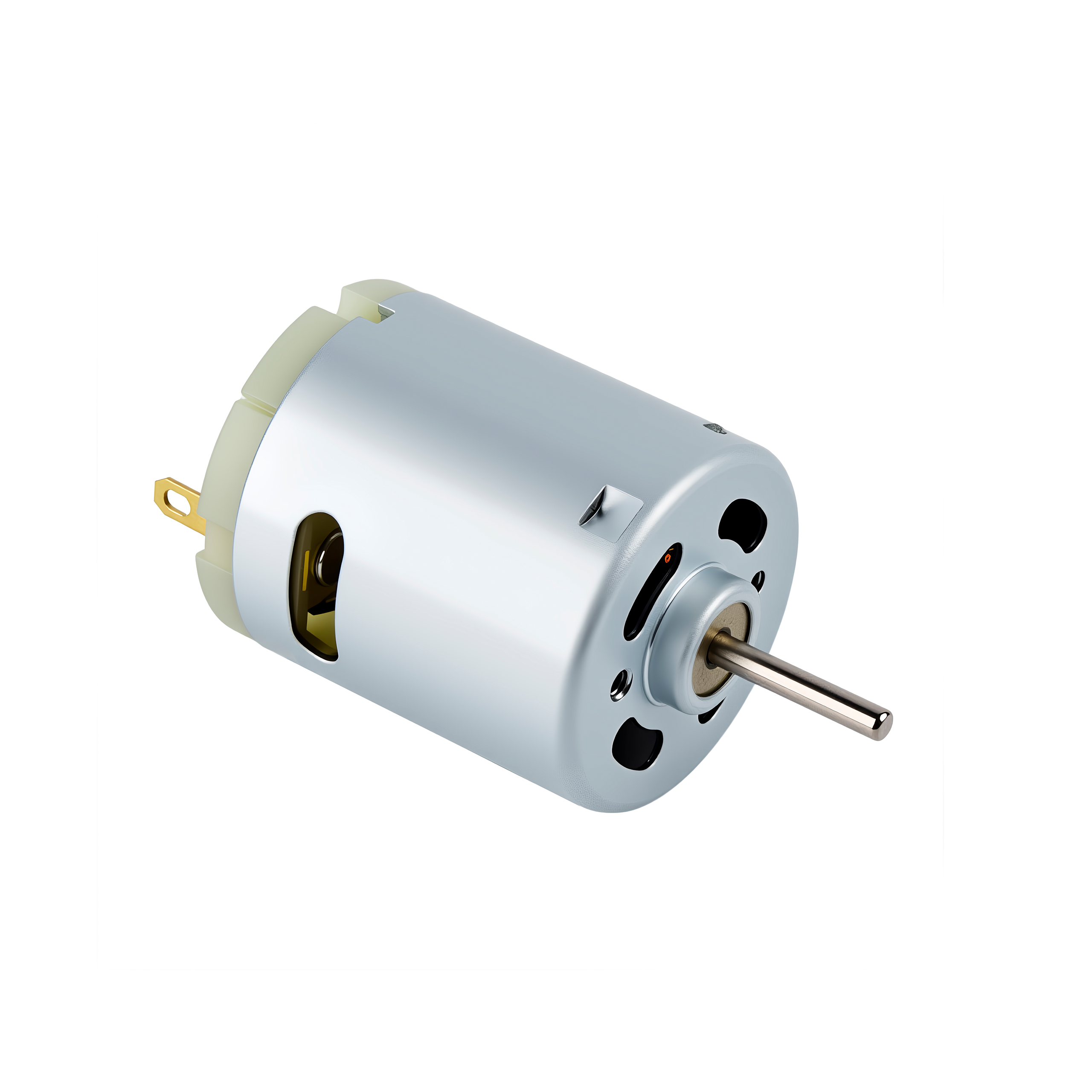

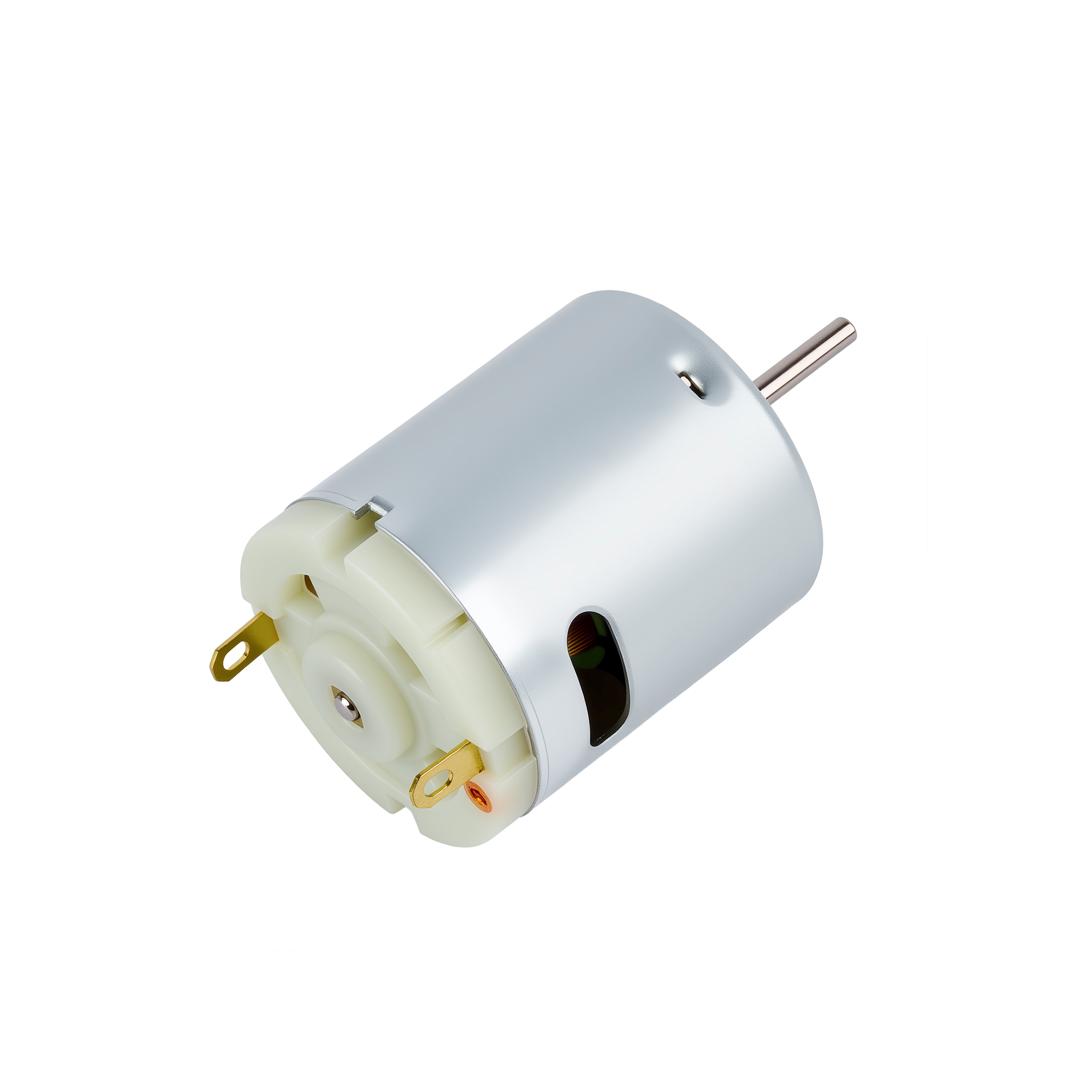

RS-360/365A

Basic Info:
Diameter: 27.7mm
Length: 32.8mm
Operating Voltage: 12V-24V
Motor Torque: 5g·cm – 50g·cm
Features:

*Customized electric performance and accessories can be achieved after evaluation.

Dimensions Drawing

*Available Customized Designs

1. Length A, B;
2. Technical Data;
3. EMC/EMI Suppression;
4. Flux Ring

Performance Data

ModelVoltageNo Load At Maximum EfficiencyStall
Operating RangeNominalSpeedCurrentSpeedCurrentTorqueOutputTorqueCurrent
VVr/minAr/minAmNmg·cmWmNmg·cmA
RS-360SA133706.0-12.01245000.0437160.193.7538.31.4621.52200.9
115206.0-24.02471000.0556710.234.5446.32.725.52601.06
RS-365SA151136.0-12.01278000.1461530.525.5957.33.626.52701.96
83656.0-24.02454200.03341090.12.828.61.2111.81200.33

FAQs

For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.

Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.

I am afraid not. The lifetime varies a lot for different Models, materials, and Operating conditions like temp., humidity, duty cycle, input power, and how the motor or gear motor is coupled to the load, etc. And the lifetime we normally mentioned is the time when the motor rotates without any stop and the Current, Speed, and Torque change is within +/-30% of the initial value. If you can specify the detailed requirements and working conditions, we’ll make our evaluation to see which one will be suitable to meet your needs.

we know, different shapes determine the size of the space, which means that different sizes can achieve performance such as different Torque values. Performance requirement includes working Voltage, rated load, and rated Speed, while the shape requirement includes the maximum size of the inStallation, out shaft size, and the direction of the terminal.
If the customer has other more detailed requirements, such as Current limit, working environment, service life requirements, EMC requirements, etc., we can also provide a more detailed and accurate evaluation together.

Dimensions Drawing

Performance Data

(*Scroll right to view the entire sheet)
ModelVoltageNo Load At Maximum EfficiencyStall
Operating RangeNominalSpeedCurrentSpeedCurrentTorqueOutputTorqueCurrent
VVr/minAr/minAmNmg·cmWmNmg·cmA
RS-360SA133706.0-12.01245000.0437160.193.7538.31.4621.52200.9
115206.0-24.02471000.0556710.234.5446.32.725.52601.06
RS-365SA151136.0-12.01278000.1461530.525.5957.33.626.52701.96
83656.0-24.02454200.03341090.12.828.61.2111.81200.33
